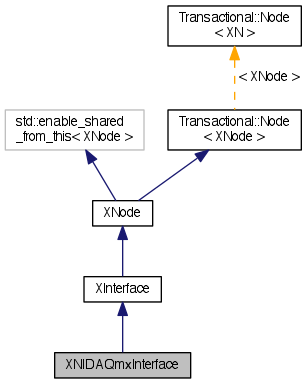

Inheritance diagram for XNIDAQmxInterface:

Classes
struct	ProductInfo

class	SoftwareTrigger
	Stores and reads time stamps between synchronized devices. More...

class	XNIDAQmxRoute

Public Types
enum	FLAGS { FLAG_BUGGY_DMA_AO = 0x10u, FLAG_BUGGY_DMA_AI = 0x20u, FLAG_BUGGY_DMA_DI = 0x40u, FLAG_BUGGY_DMA_DO = 0x80u, FLAG_BUGGY_XFER_COND_AO = 0x100u, FLAG_BUGGY_XFER_COND_AI = 0x200u, FLAG_BUGGY_XFER_COND_DI = 0x400u, FLAG_BUGGY_XFER_COND_DO = 0x800u }

Public Member Functions
	XNIDAQmxInterface (const char *name, bool runtime, const shared_ptr< XDriver > &driver)

virtual bool	isOpened () const

const char *	devName () const
	e.g. "Dev1".

void	synchronizeClock (TaskHandle task)

const char *	productType () const
	e.g. "PCI-6111".

const char *	productSeries () const
	e.g. "S", "M".

const char *	busArchType () const
	e.g. "PCI", "PXI". Never "PCIe" or "PXIe".

int	productFlags () const
	e.g. FLAG_BUGGY_DMA_AO.

double	maxAIRate (unsigned int) const

double	maxAORate (unsigned int) const

double	maxDIRate (unsigned int) const

double	maxDORate (unsigned int) const

Public Member Functions inherited from XInterface
	XInterface (const char *name, bool runtime, const shared_ptr< XDriver > &driver)

void	setLabel (const XString &str)

virtual XString	getLabel () const

shared_ptr< XDriver >	driver () const

const shared_ptr< XComboNode > &	device () const
	type of interface or driver.

const shared_ptr< XStringNode > &	port () const
	port number or device name.

const shared_ptr< XUIntNode > &	address () const
	e.g. GPIB address.

const shared_ptr< XBoolNode > &	control () const
	True if interface is opened. Start/stop interface.

void	lock ()

void	unlock ()

bool	isLocked () const

XRecursiveMutex &	mutex ()

void	start ()

void	stop ()

Public Member Functions inherited from XNode
	XNode (const char *name, bool runtime=false)

template<class T >
shared_ptr< T >	create (const char *name)

template<class T , typename... Args>
shared_ptr< T >	create (const char *name, bool runtime, Args &&...args)

template<class T >
shared_ptr< T >	create (Transaction &tr, const char *name)

template<class T , typename... Args>
shared_ptr< T >	create (Transaction &tr, const char *name, bool runtime, Args &&...args)

XString	getName () const

XString	getTypename () const

shared_ptr< XNode >	getChild (const XString &var) const

shared_ptr< XNode >	getParent () const

void	setUIEnabled (bool v)
	Enables/disables controls over scripting/GUI.

void	disable ()
	Disables all scripting/GUI operations on this node hereafter.

Public Member Functions inherited from Transactional::Node< XNode >
bool	insert (Transaction< XNode > &tr, const shared_ptr< XNode > &var, bool online_after_insertion=false)

void	insert (const shared_ptr< XNode > &var)

bool	release (Transaction< XNode > &tr, const shared_ptr< XNode > &var)

void	release (const shared_ptr< XNode > &var)

void	releaseAll ()

bool	swap (Transaction< XNode > &tr, const shared_ptr< XNode > &x, const shared_ptr< XNode > &y)

void	swap (const shared_ptr< XNode > &x, const shared_ptr< XNode > &y)

XNode *	upperNode (Snapshot< XNode > &shot)
	Finds the parent node in shot.

Snapshot< XNode >	iterate_commit (Closure)

Snapshot< XNode >	iterate_commit_if (Closure)

void	iterate_commit_while (Closure)

void	print_ () const

	Node (const Node &)=delete

Node &	operator= (const Node &)=delete

Static Public Member Functions
static XString	getNIDAQmxErrMessage ()

static XString	getNIDAQmxErrMessage (int status)

static int	checkDAQmxError (int ret, const char *file, int line)

static void	parseList (const char *list, std::deque< XString > &buf)
	Split camma-separated strings.

Protected Member Functions
virtual void	open () throw (XInterfaceError &)

virtual void	close () throw (XInterfaceError &)
	This can be called even if has already closed.

Private Member Functions
bool	routeExternalClockSource (const char dev, const char inp_term)

Private Attributes
XString	m_devname

const ProductInfo *	m_productInfo

Static Private Attributes
static const ProductInfo	sc_productInfoList []

Friends
class	SoftwareTrigger

Detailed Description

Definition at line 47 of file nidaqmxdriver.h.

Member Function Documentation

double XNIDAQmxInterface::maxAIRate ( unsigned int ) const

inline

Returns: 0 if hw timed transfer is not supported.

Definition at line 94 of file nidaqmxdriver.h.

References XNIDAQmxInterface::ProductInfo::ai_max_rate.

bool XNIDAQmxInterface::routeExternalClockSource	(	const char *	dev,
		const char *	inp_term
	)

private

Returns: true if an external source is detected and rounted.

Definition at line 541 of file nidaqmxdriver.cpp.

The documentation for this class was generated from the following files:

modules/nidaq/nidaqmxdriver.h
modules/nidaq/nidaqmxdriver.cpp
