XWinCUSBInterface Class Reference: API and code reference

interfaces chameleon USB, found at http://optimize.ath.cx/cusb More...

#include <ezusbthamway.h>

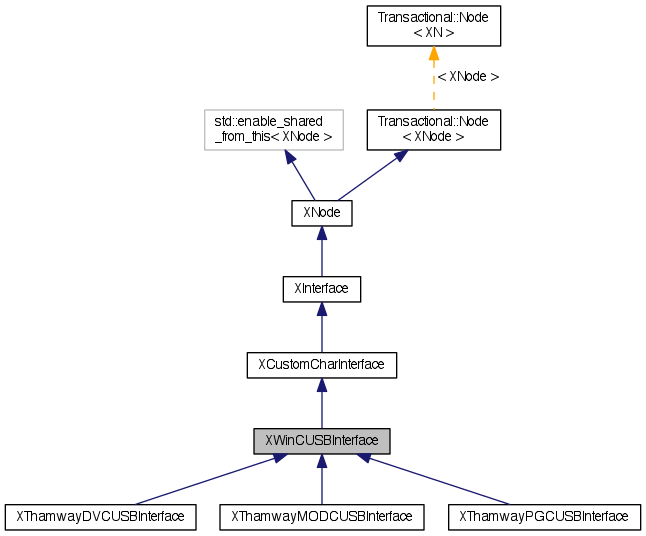

Inheritance diagram for XWinCUSBInterface:

Classes
struct	USBDevice

Public Member Functions
	XWinCUSBInterface (const char name, bool runtime, const shared_ptr< XDriver > &driver, uint8_t addr_offset, const char id)

virtual void	open () throw (XInterfaceError &)

virtual void	close () throw (XInterfaceError &)
	This can be called even if has already closed.

void	deferWritings ()

void	writeToRegister8 (unsigned int addr, uint8_t data)

void	writeToRegister16 (unsigned int addr, uint16_t data)

void	bulkWriteStored ()

void	resetBulkWrite ()

void	burstRead (unsigned int addr, uint8_t *buf, unsigned int cnt)

uint8_t	singleRead (unsigned int addr)

uint16_t	readRegister8 (unsigned int addr)

uint16_t	readRegister16 (unsigned int addr)

XString	getIDN (int maxlen=255)

void	lock ()
	overrides XInterface::lock().

void	unlock ()

bool	isLocked () const

virtual void	send (const char *str) throw (XCommError &)

virtual void	receive () throw (XCommError &)

virtual bool	isOpened () const

Public Member Functions inherited from XCustomCharInterface
	XCustomCharInterface (const char *name, bool runtime, const shared_ptr< XDriver > &driver)

const std::vector< char > &	buffer () const

int	scanf (const char *format,...) const __attribute__((format(scanf
	error-check is user's responsibility.

int double	toDouble () const throw (XConvError &)

int	toInt () const throw (XConvError &)

unsigned int	toUInt () const throw (XConvError &)

XString	toStr () const

XString	toStrSimplified () const
	returns string white-spaces stripped.

void	sendf (const char *format,...) __attribute__((format(printf throw (XInterfaceError &)

void void	queryf (const char *format,...) __attribute__((format(printf throw (XInterfaceError &)

void void void	setEOS (const char *str)

const XString &	eos () const

void	query (const XString &str) throw (XCommError &)

virtual void	query (const char *str) throw (XCommError &)

Public Member Functions inherited from XInterface
	XInterface (const char *name, bool runtime, const shared_ptr< XDriver > &driver)

void	setLabel (const XString &str)

virtual XString	getLabel () const

shared_ptr< XDriver >	driver () const

const shared_ptr< XComboNode > &	device () const
	type of interface or driver.

const shared_ptr< XStringNode > &	port () const
	port number or device name.

const shared_ptr< XUIntNode > &	address () const
	e.g. GPIB address.

const shared_ptr< XBoolNode > &	control () const
	True if interface is opened. Start/stop interface.

void	lock ()

void	unlock ()

bool	isLocked () const

XRecursiveMutex &	mutex ()

void	start ()

void	stop ()

Public Member Functions inherited from XNode
	XNode (const char *name, bool runtime=false)

template<class T >
shared_ptr< T >	create (const char *name)

template<class T , typename... Args>
shared_ptr< T >	create (const char *name, bool runtime, Args &&...args)

template<class T >
shared_ptr< T >	create (Transaction &tr, const char *name)

template<class T , typename... Args>
shared_ptr< T >	create (Transaction &tr, const char *name, bool runtime, Args &&...args)

XString	getName () const

XString	getTypename () const

shared_ptr< XNode >	getChild (const XString &var) const

shared_ptr< XNode >	getParent () const

void	setUIEnabled (bool v)
	Enables/disables controls over scripting/GUI.

void	disable ()
	Disables all scripting/GUI operations on this node hereafter.

Public Member Functions inherited from Transactional::Node< XNode >
bool	insert (Transaction< XNode > &tr, const shared_ptr< XNode > &var, bool online_after_insertion=false)

void	insert (const shared_ptr< XNode > &var)

bool	release (Transaction< XNode > &tr, const shared_ptr< XNode > &var)

void	release (const shared_ptr< XNode > &var)

void	releaseAll ()

bool	swap (Transaction< XNode > &tr, const shared_ptr< XNode > &x, const shared_ptr< XNode > &y)

void	swap (const shared_ptr< XNode > &x, const shared_ptr< XNode > &y)

XNode *	upperNode (Snapshot< XNode > &shot)
	Finds the parent node in shot.

Snapshot< XNode >	iterate_commit (Closure)

Snapshot< XNode >	iterate_commit_if (Closure)

void	iterate_commit_while (Closure)

void	print_ () const

	Node (const Node &)=delete

Node &	operator= (const Node &)=delete

Private Member Functions
XString	getIDN (void *handle, int maxlen=255)

Static Private Member Functions
static void	setLED (void *handle, uint8_t data)

static uint8_t	readDIPSW (void *handle)

static uint8_t	singleRead (void *handle, unsigned int addr, unsigned int addroffset)

static void	openAllEZUSBdevices ()

static void	setWave (void handle, const uint8_t wave)

static void	closeAllEZUSBdevices ()

static XString	getIDN (void *handle, int maxlen, int offsetaddr)

Private Attributes
void *	m_handle

shared_ptr< XRecursiveMutex >	m_mutex

XString	m_idString

uint8_t	m_addrOffset

bool	m_bBurstWrite

std::vector< uint8_t >	m_buffer

Static Private Attributes
static XMutex	s_mutex

static std::deque< USBDevice >	s_devices

static int	s_refcnt = 0

Additional Inherited Members
Public Types inherited from Transactional::Node< XNode >
using	NodeNotFoundError = std::domain_error

using	NodeList = fast_vector< shared_ptr< XNode >, 2 >

using	iterator = typename NodeList::iterator

using	const_iterator = typename NodeList::const_iterator

Static Public Member Functions inherited from XCustomCharInterface
static std::vector< char > &	buffer_receive ()
	only for XPort and internal use.

Protected Member Functions inherited from Transactional::Node< XNode >
	Node ()
	Use create().

Detailed Description

interfaces chameleon USB, found at http://optimize.ath.cx/cusb

Definition at line 21 of file ezusbthamway.h.

The documentation for this class was generated from the following files:

modules/nmr/thamway/ezusbthamway.h
modules/nmr/thamway/ezusbthamway.cpp
