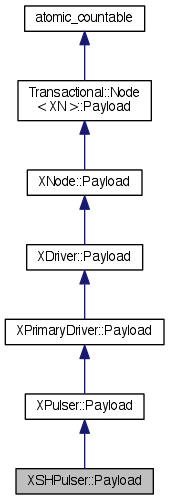

Inheritance diagram for XSHPulser::Payload:
Private Attributes | |
| uint32_t | m_lastPattern |
| uint64_t | m_dmaTerm |
| std::vector< unsigned char > | m_zippedPatterns |
| int | m_waveformPos [PAT_QAM_PULSE_IDX_MASK/PAT_QAM_PULSE_IDX] |
Friends | |
| class | XSHPulser |
Additional Inherited Members | |
 Public Types inherited from XPulser::Payload | |
| typedef std::deque< RelPat > | RelPatList |
| Public Member Functions inherited from XPulser::Payload | |
| int16_t | combMode () const |
| ver 1 records. | |
| double | rtime () const |
| double | tau () const |
| double | pw1 () const |
| double | pw2 () const |
| double | combP1 () const |
| double | altSep () const |
| double | combP1Alt () const |
| double | aswSetup () const |
| double | aswHold () const |
| double | difFreq () const |
| ver 2 records. | |
| double | combPW () const |
| double | combPT () const |
| uint16_t | echoNum () const |
| uint16_t | combNum () const |
| int16_t | rtMode () const |
| uint16_t | numPhaseCycle () const |
| bool | invertPhase () const |
| ver 3 records. | |
| int16_t | p1Func () const |
| ver 4 records. | |
| int16_t | p2Func () const |
| int16_t | combFunc () const |
| double | p1Level () const |
| double | p2Level () const |
| double | combLevel () const |
| double | masterLevel () const |
| double | combOffRes () const |
| bool | conserveStEPhase () const |
| bool | isPulseAnalyzerMode () const |
| double | paPulseRept () const |
| double | paPulseBW () const |
| double | paPulseOrigin () const |
| double | periodicTerm () const |
| periodic term of one cycle [ms]. | |
| RelPatList & | relPatList () |
| const RelPatList & | relPatList () const |
|
const std::vector < std::complex< double > > & | qamWaveForm (unsigned int idx) const |
Detailed Description
Definition at line 25 of file pulserdriversh.h.
The documentation for this struct was generated from the following file:
- modules/nmr/pulserdriversh.h
