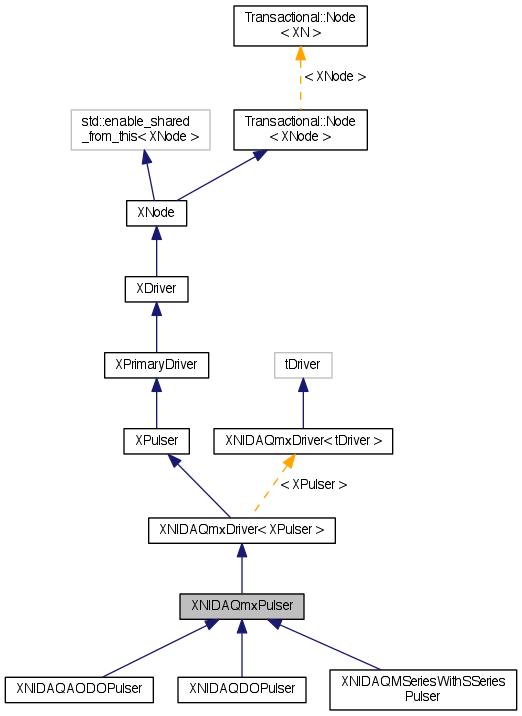

Inheritance diagram for XNIDAQmxPulser:

Classes
struct	GenPattern

struct	Payload

struct	RingBuffer
	Ring buffer storing AO/DO patterns being transfered to DAQmx lib. More...

struct	tRawAOSet

Public Member Functions
	XNIDAQmxPulser (const char *name, bool runtime, Transaction &tr_meas, const shared_ptr< XMeasure > &meas)

virtual double	resolution () const
	time resolution [ms]

Public Member Functions inherited from XNIDAQmxDriver< XPulser >
	XNIDAQmxDriver (const char *name, bool runtime, Transaction &tr_meas, const shared_ptr< XMeasure > &meas)

Public Member Functions inherited from XPulser
	XPulser (const char *name, bool runtime, Transaction &tr_meas, const shared_ptr< XMeasure > &meas)

virtual void	showForms ()
	shows all forms belonging to driver

const shared_ptr< XBoolNode > &	output () const

const shared_ptr< XComboNode > &	combMode () const

const shared_ptr< XComboNode > &	rtMode () const

const shared_ptr< XComboNode > &	numPhaseCycle () const
	How many cycles in phase cycling.

const shared_ptr< XDoubleNode > &	rtime () const
	Repetition/Rest Time [ms].

const shared_ptr< XDoubleNode > &	tau () const
	[us]

const shared_ptr< XDoubleNode > &	combPW () const
	PulseWidths [us].

const shared_ptr< XDoubleNode > &	pw1 () const
	PulseWidths [us].

const shared_ptr< XDoubleNode > &	pw2 () const
	PulseWidths [us].

const shared_ptr< XDoubleNode > &	combPT () const
	Comb pulse periodic term [us].

const shared_ptr< XDoubleNode > &	combP1 () const
	P1 and P1 alternative.

const shared_ptr< XDoubleNode > &	combP1Alt () const
	P1 and P1 alternative.

const shared_ptr< XDoubleNode > &	aswSetup () const
	Analog switch setting, setup(proceeding) time before the first spin echo.

const shared_ptr< XDoubleNode > &	aswHold () const
	Analog switch setting, hold time after the last spin echo.

const shared_ptr< XDoubleNode > &	altSep () const
	Separation time in DSO record, cause a shift of trigger of DSO in alternatively mode.

const shared_ptr< XDoubleNode > &	g2Setup () const
	Setup time of pre-gating port and QPSK.

const shared_ptr< XUIntNode > &	combNum () const
	of comb pulses

const shared_ptr< XUIntNode > &	echoNum () const
	of Spin echoes (i.e. pi pulses)

const shared_ptr< XBoolNode > &	drivenEquilibrium () const
	polarize spins after pulse sequence or not

const shared_ptr< XDoubleNode > &	combOffRes () const
	off-resonance comb pulses

const shared_ptr< XComboNode > &	combFunc () const
	Pulse Modulation.

const shared_ptr< XComboNode > &	p1Func () const
	Pulse Modulation.

const shared_ptr< XComboNode > &	p2Func () const
	Pulse Modulation.

const shared_ptr< XDoubleNode > &	combLevel () const
	[dB], Pulse Modulation

const shared_ptr< XDoubleNode > &	p1Level () const
	[dB], Pulse Modulation

const shared_ptr< XDoubleNode > &	p2Level () const
	[dB], Pulse Modulation

const shared_ptr< XDoubleNode > &	masterLevel () const
	[dB]

const shared_ptr< XBoolNode > &	induceEmission () const

const shared_ptr< XDoubleNode > &	induceEmissionPhase () const

const shared_ptr< XDoubleNode > &	qamOffset1 () const

const shared_ptr< XDoubleNode > &	qamOffset2 () const
	[F.S.]

const shared_ptr< XDoubleNode > &	qamLevel1 () const

const shared_ptr< XDoubleNode > &	qamLevel2 () const
	< Quadrature Amplitude Modulation. Amplitude compensation factor.

const shared_ptr< XDoubleNode > &	qamDelay1 () const

const shared_ptr< XDoubleNode > &	qamDelay2 () const
	< Delaying compensation [us].

const shared_ptr< XDoubleNode > &	difFreq () const
	[MHz]

const shared_ptr< XDoubleNode > &	qswDelay () const
	Q-switch setting, period after the end-edge of pulses [us].

const shared_ptr< XDoubleNode > &	qswWidth () const
	Q-switch setting, width of suppression [us].

const shared_ptr< XDoubleNode > &	qswSoftSWOff () const
	Q-switch setting, second pulse [us].

const shared_ptr< XBoolNode > &	qswPiPulseOnly () const
	Q-switch setting, use QSW only for pi pulses.

const shared_ptr< XBoolNode > &	invertPhase () const

const shared_ptr< XBoolNode > &	conserveStEPhase () const

const shared_ptr< XComboNode > &	portSel (unsigned int port) const

const shared_ptr< XBoolNode > &	pulseAnalyzerMode () const

const shared_ptr< XDoubleNode > &	paPulseRept () const

const shared_ptr< XDoubleNode > &	paPulseBW () const

const shared_ptr< XUIntNode > &	firstPhase () const
	0-3, selects the first phase of QPSK.

Public Member Functions inherited from XPrimaryDriver
	XPrimaryDriver (const char *name, bool runtime, Transaction &tr_meas, const shared_ptr< XMeasure > &meas)

Public Member Functions inherited from XDriver
	XDriver (const char *name, bool runtime, Transaction &tr_meas, const shared_ptr< XMeasure > &meas)

Public Member Functions inherited from XNode
	XNode (const char *name, bool runtime=false)

template<class T >
shared_ptr< T >	create (const char *name)

template<class T , typename... Args>
shared_ptr< T >	create (const char *name, bool runtime, Args &&...args)

template<class T >
shared_ptr< T >	create (Transaction &tr, const char *name)

template<class T , typename... Args>
shared_ptr< T >	create (Transaction &tr, const char *name, bool runtime, Args &&...args)

XString	getName () const

virtual XString	getLabel () const

XString	getTypename () const

shared_ptr< XNode >	getChild (const XString &var) const

shared_ptr< XNode >	getParent () const

void	setUIEnabled (bool v)
	Enables/disables controls over scripting/GUI.

void	disable ()
	Disables all scripting/GUI operations on this node hereafter.

Public Member Functions inherited from Transactional::Node< XNode >
bool	insert (Transaction< XNode > &tr, const shared_ptr< XNode > &var, bool online_after_insertion=false)

void	insert (const shared_ptr< XNode > &var)

bool	release (Transaction< XNode > &tr, const shared_ptr< XNode > &var)

void	release (const shared_ptr< XNode > &var)

void	releaseAll ()

bool	swap (Transaction< XNode > &tr, const shared_ptr< XNode > &x, const shared_ptr< XNode > &y)

void	swap (const shared_ptr< XNode > &x, const shared_ptr< XNode > &y)

XNode *	upperNode (Snapshot< XNode > &shot)
	Finds the parent node in shot.

Snapshot< XNode >	iterate_commit (Closure)

Snapshot< XNode >	iterate_commit_if (Closure)

void	iterate_commit_while (Closure)

void	print_ () const

	Node (const Node &)=delete

Node &	operator= (const Node &)=delete

Protected Member Functions
virtual void	open ()=0 throw (XKameError &)
	Be called just after opening interface. Call start() inside this routine appropriately.

virtual void	close () throw (XKameError &)
	Be called during stopping driver. Call interface()->stop() inside this routine.

double	resolutionQAM () const

virtual bool	hasQAMPorts () const =0

virtual const shared_ptr < XNIDAQmxInterface > &	intfDO () const

virtual const shared_ptr < XNIDAQmxInterface > &	intfAO () const

virtual const shared_ptr < XNIDAQmxInterface > &	intfCtr () const

virtual void	changeOutput (const Snapshot &shot, bool output, unsigned int blankpattern)
	Sends patterns to pulser or turns off.

virtual void	createNativePatterns (Transaction &tr)
	Converts RelPatList to native patterns.

virtual double	minPulseWidth () const

void	openDO (bool use_ao_clock=false) throw (XKameError &)

void	openAODO () throw (XKameError &)

Protected Member Functions inherited from XNIDAQmxDriver< XPulser >
const shared_ptr < XNIDAQmxInterface > &	interface () const

void	onOpen (const Snapshot &shot, XInterface *)

void	onClose (const Snapshot &shot, XInterface *)

virtual void	closeInterface ()
	This should not cause an exception.

Protected Member Functions inherited from XPulser
unsigned int	selectedPorts (const Snapshot &shot, int func) const

virtual void	start ()
	Starts up your threads, connects GUI, and activates signals.

virtual void	stop ()

virtual void	analyzeRaw (RawDataReader &reader, Transaction &tr) throw (XRecordError&)

virtual void	visualize (const Snapshot &shot)

tpulsefunc	pulseFunc (int func_no) const

int	pulseFuncNo (const XString &str) const

Protected Member Functions inherited from XPrimaryDriver
void	finishWritingRaw (const shared_ptr< const RawData > &rawdata, const XTime &time_awared, const XTime &time_recorded)

Protected Member Functions inherited from XDriver
void	record (Transaction &tr, const XTime &time_awared, const XTime &time_recorded)

Protected Attributes
double	m_resolutionDO

double	m_resolutionAO

TaskHandle	m_taskAO

TaskHandle	m_taskDO

TaskHandle	m_taskDOCtr

TaskHandle	m_taskGateCtr

Private Types
enum	{ NUM_AO_CH = 2 }

enum	{ CAL_POLY_ORDER = 4 }

enum	{ PORTSEL_PAUSING = 17 }

typedef int16	tRawAO

typedef uInt16	tRawDO

typedef std::vector < GenPattern >::iterator	GenPatternIterator

typedef std::deque< std::pair < uint64_t, uint64_t > >	QueueTimeGenCnt

Private Member Functions
void	startPulseGen (const Snapshot &shot) throw (XKameError &)

void	stopPulseGen ()

void	abortPulseGen ()

void	stopPulseGenFreeRunning (unsigned int blankpattern)

void	startPulseGenFromFreeRun (const Snapshot &shot)

void	clearTasks ()

void	setupTasksDO (bool use_ao_clock)

void	setupTasksAODO ()

void	onTaskDone (TaskHandle task, int32 status)

tRawAOSet	aoVoltToRaw (const double poly_coeff[NUM_AO_CH][CAL_POLY_ORDER], const std::complex< double > &volt)
	Converts voltage to an internal value for DAC and compensates it.

template<bool UseAO>
bool	fillBuffer ()

void	rewindBufPos (double ms_from_gen_pos)

ssize_t	writeToDAQmxDO (const tRawDO *pDO, ssize_t samps)

ssize_t	writeToDAQmxAO (const tRawAOSet *pAO, ssize_t samps)

void	startBufWriter ()

void	stopBufWriter ()

void *	executeWriter (const atomic< bool > &)

void *	executeFillBuffer (const atomic< bool > &)

void	preparePatternGen (const Snapshot &shot, bool use_dummypattern, unsigned int blankpattern)

int	makeWaveForm (int num, double pw, tpulsefunc func, double dB, double freq=0.0, double phase=0.0)

Static Private Member Functions
static int32	onTaskDone_ (TaskHandle task, int32 status, void *)

Private Attributes
shared_ptr< std::vector < GenPattern > >	m_genPatternList

GenPatternIterator	m_genLastPatIt

unsigned int	m_genAOIndex
	Preserved index for m_genPulseWaveAO[],.

shared_ptr < XNIDAQmxInterface::SoftwareTrigger >	m_softwareTrigger

unsigned int	m_pausingBit
	Pausing bit triggers counter that stops DO/AO for a certain period.

unsigned int	m_aswBit

unsigned int	m_pausingCount

XString	m_pausingCh

XString	m_pausingSrcTerm

XString	m_pausingGateTerm

unsigned int	m_preFillSizeDO
	Determines stating condition,.

unsigned int	m_preFillSizeAO

unsigned int	m_transferSizeHintDO
	Max size of data transfer to DAQmx lib.

unsigned int	m_transferSizeHintAO

uint64_t	m_genTotalCount
	During the pattern generation, indicates total # of clocks at the next pattern change that has elapsed from the origin.

uint64_t	m_genRestCount

uint64_t	m_genTotalSamps
	m_genTotalSamps is different from m_genTotalCount when pausing clocks are active.

uint64_t	m_totalWrittenSampsDO

uint64_t	m_totalWrittenSampsAO
	of samps written to DAQmx lib.

bool	m_running

RingBuffer< tRawDO >	m_patBufDO
	Buffer containing generated patterns for DO.

RingBuffer< tRawAOSet >	m_patBufAO
	Buffer containing generated patterns for AO.

shared_ptr< std::vector < tRawAOSet > >	m_genPulseWaveAO [PAT_QAM_MASK/PAT_QAM_PHASE]

tRawAOSet	m_genAOZeroLevel

double	m_coeffAODev [NUM_AO_CH][CAL_POLY_ORDER]

double	m_upperLimAO [NUM_AO_CH]

double	m_lowerLimAO [NUM_AO_CH]

shared_ptr< XThread < XNIDAQmxPulser > >	m_threadWriter

bool	m_isThreadWriterReady

XRecursiveMutex	m_stateLock

QueueTimeGenCnt	m_queueTimeGenCnt
	pairs of real time and # of DO samps, which are identical if pausing feature is off.

Additional Inherited Members
Public Types inherited from XPulser
enum	{ N_MODE_NMR_PULSER = 0, N_MODE_PULSE_ANALYZER = 1 }
	driver specific part below More...

enum	{ N_COMB_MODE_OFF = 0, N_COMB_MODE_ON = 1, N_COMB_MODE_P1_ALT = 2, N_COMB_MODE_COMB_ALT = 3 }

enum	{ N_RT_MODE_FIXREP = 0, N_RT_MODE_FIXREST = 1 }

enum	{ MAX_NUM_PHASE_CYCLE = 16 }

enum	{ NUM_DO_PORTS = 16 }
	of digital-pulse ports.

enum	{ PAT_DO_MASK = (1 << NUM_DO_PORTS) - 1, PAT_QAM_PHASE = (1 << NUM_DO_PORTS), PAT_QAM_PHASE_MASK = PAT_QAM_PHASE * 3, PAT_QAM_PULSE_IDX = PAT_QAM_PHASE * 4, PAT_QAM_PULSE_IDX_P1 = PAT_QAM_PULSE_IDX * 1, PAT_QAM_PULSE_IDX_P2 = PAT_QAM_PULSE_IDX * 2, PAT_QAM_PULSE_IDX_PCOMB = PAT_QAM_PULSE_IDX * 3, PAT_QAM_PULSE_IDX_INDUCE_EMISSION = PAT_QAM_PULSE_IDX * 4, PAT_QAM_PULSE_IDX_MASK = PAT_QAM_PULSE_IDX * 15, PAT_QAM_MASK = PAT_QAM_PHASE_MASK \| PAT_QAM_PULSE_IDX_MASK }
	for RelPatList patterns. More...

Static Public Member Functions inherited from XNode
template<class T__ >
static shared_ptr< T__ >	createOrphan (const char *name)

template<class T__ , typename... Args_>
static shared_ptr< T__ >	createOrphan (const char *name, bool runtime, Args_ &&...args)

Protected Types inherited from XPulser
enum	{ PORTSEL_UNSEL = -1, PORTSEL_GATE = 0, PORTSEL_PREGATE = 1, PORTSEL_GATE3 = 2, PORTSEL_TRIG1 = 3, PORTSEL_TRIG2 = 4, PORTSEL_ASW = 5, PORTSEL_QSW = 6, PORTSEL_PULSE1 = 7, PORTSEL_PULSE2 = 8, PORTSEL_COMB = 9, PORTSEL_COMB_FM = 10, PORTSEL_QPSK_A = 11, PORTSEL_QPSK_B = 12, PORTSEL_QPSK_OLD_NONINV = 13, PORTSEL_QPSK_OLD_INV = 14, PORTSEL_QPSK_OLD_PSGATE = 15, PORTSEL_PULSE_ANALYZER_GATE = 16 }
	indice for return values of portSel().

typedef FFT::twindowfunc	tpulsefunc

Detailed Description

Definition at line 27 of file pulserdrivernidaqmx.h.

Member Function Documentation

template<bool UseAO>

bool XNIDAQmxPulser::fillBuffer ( )

inlineprivate

Returns: Succeeded or not.

Definition at line 861 of file pulserdrivernidaqmx.cpp.

References XNIDAQmxPulser::RingBuffer< T >::chunkSize(), XNIDAQmxPulser::RingBuffer< T >::finWriting(), m_genAOIndex, m_genRestCount, m_genTotalCount, m_genTotalSamps, m_patBufAO, m_patBufDO, m_pausingBit, and resolution().

virtual bool XNIDAQmxPulser::hasQAMPorts ( ) const

protectedpure virtual

Returns: Existence of AO ports.

Implements XPulser.

Implemented in XNIDAQMSeriesWithSSeriesPulser, XNIDAQDOPulser, and XNIDAQAODOPulser.

Referenced by createNativePatterns().

virtual double XNIDAQmxPulser::minPulseWidth ( ) const

inlineprotectedvirtual

Returns: Minimum period of pulses [ms]

Implements XPulser.

Definition at line 76 of file pulserdrivernidaqmx.h.

References resolution().

ssize_t XNIDAQmxPulser::writeToDAQmxDO	(	const tRawDO *	pDO,
		ssize_t	samps
	)

private

Returns: Counts being sent.

Definition at line 846 of file pulserdrivernidaqmx.cpp.

Member Data Documentation

unsigned int XNIDAQmxPulser::m_genAOIndex

private

Preserved index for m_genPulseWaveAO[],.

See Also: fillBuffer().

Definition at line 100 of file pulserdrivernidaqmx.h.

Referenced by fillBuffer().

uint64_t XNIDAQmxPulser::m_genRestCount

private

indicates the remaining # of clocks to the next pattern change.

Definition at line 114 of file pulserdrivernidaqmx.h.

Referenced by fillBuffer().

uint64_t XNIDAQmxPulser::m_genTotalSamps

private

m_genTotalSamps is different from m_genTotalCount when pausing clocks are active.

During the pattern generation, total # of samplings that has been generated for DO buffered device.

Definition at line 117 of file pulserdrivernidaqmx.h.

Referenced by fillBuffer().

bool XNIDAQmxPulser::m_isThreadWriterReady

private

indicates DAQmx lib. has been (partially) filled with generated patterns.

Definition at line 191 of file pulserdrivernidaqmx.h.

unsigned int XNIDAQmxPulser::m_preFillSizeDO

private

Determines stating condition,.

See Also: m_isThreadWriterReady.

Definition at line 108 of file pulserdrivernidaqmx.h.

The documentation for this class was generated from the following files:

modules/nidaq/pulserdrivernidaqmx.h
modules/nidaq/pulserdrivernidaqmx.cpp

Classes

Public Member Functions

of comb pulses

of Spin echoes (i.e. pi pulses)

Protected Member Functions

Protected Attributes

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

of samps written to DAQmx lib.

Additional Inherited Members

of digital-pulse ports.

Detailed Description

Member Function Documentation

Member Data Documentation
